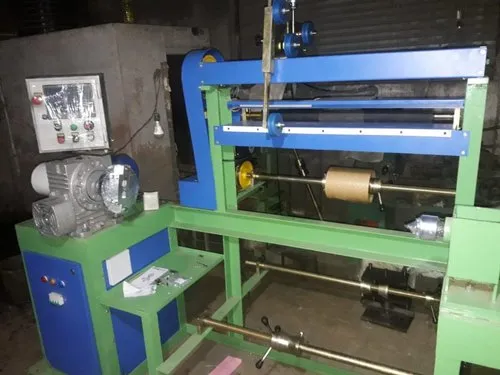

HV Transformer Coil Winding Machine Semi Automatic CNC
Price Rs 4,10,000 Lakh / Plant
The RAM-1000 HV Transformer Coil Winding Machine (Semi Automatic CNC) is a PLC-controlled, programmable winding machine designed for high-voltage round and square transformer coils. It features automatic insulation paper feeding, length control, and cutting, supporting transformers from 100kVA up to 2000kVA. With a maximum coil axis length of 1000mm and outer diameter up to 800mm, the machine allows layer-by-layer winding with precise accuracy. The user-friendly interface enables easy operation and programming, with 30 recipe programs and 30 taping functions for versatile production. Ideal for HV transformer manufacturing, the RAM-1000 ensures high efficiency, consistent coil quality, and reliable performance.
Keywords naturally included:
- HV Transformer Coil Winding Machine Semi Automatic CNC
- RAM-1000
- High-voltage transformer coil winding
- PLC-controlled winding machine
- Transformer manufacturing machine
- Round and square coil winding
| Capacity | 100kva to 3000 kva |
|---|---|
| Automation Grade | Semi-Automatic |
| Design | Standard |
| winding speed | step lass veritable 0 to 250 rpm |
| taverers control by | servo system |
| winding accuracy | 0.05mm + – |
| control display | 7" LCD malty color touch pad hmi |
| winding wire type | round 0.7mm to 4mm strip 2mm up to 15mm |
| winding coil dia | 8000 |
| paper decoilar | 3 nos atomatic |
| turn counting | digital display in hmi |
| coil winding lanth | 1000mm |
| insulation paper cut | ato |
| Item Code | 1000 |
| Production Capacity | 100 coil day |
| Delivery Time | 15 DAY |
| Packaging Details | necked |
